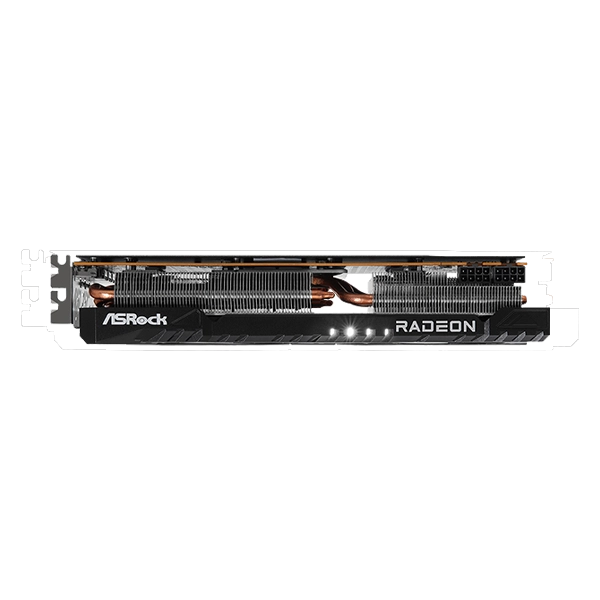

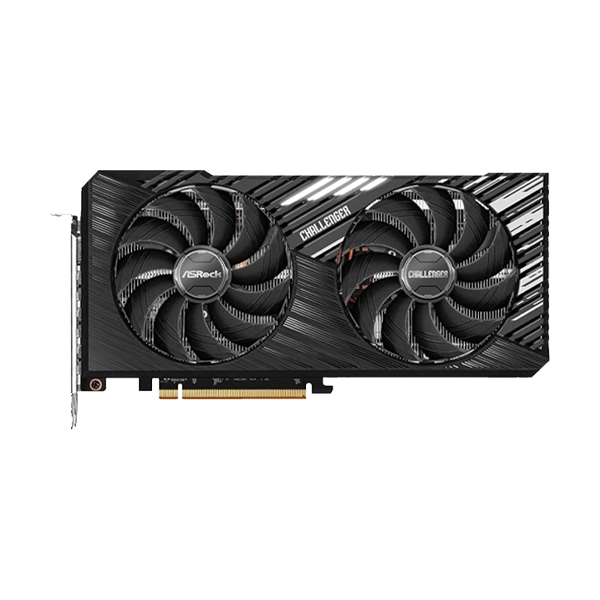

ASRock Radeon RX 7700 XT Challenger 12GB OC
FEATURES
Clock: GPU / Memory
- Boost Clock*: Up to 2584 MHz / 18 Gbps
- Game Clock**: 2226 MHz / 18 Gbps
Key Specifications
- AMD Radeonâ„¢ RX 7700 XT
- 12GB GDDR6 on 192-bit Memory Bus
- 54 AMD RDNAâ„¢ 3 Compute Units (with RT+AI Accelerators)
- 48MB AMD Infinity Cacheâ„¢ technology
- Microsoft® DirectX® 12 Ultimate
- PCI® Express4.0 Support
- 2 x 8-pin Power Connector
- Output: 3 x DisplayPort™ 2.1***, 1 x HDMI® 2.1
Key Features
- Dual Fan Design
- Stylish Metal Backplate
- Striped Ring Fan
- Ultra-fit Heatpipe
- LED Indicator
- 0dB Silent Cooling
- Super Alloy Graphics Card
Dual Fan Design
Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.
Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Striped Ring Fan Designed For Enhanced Airflow
ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.
LED Indicators
More Decoration. More Beauty.
LED indicator embellished the graphics card to make it more beautiful.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Ultra-fit Heatpipe Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
High-density Metal Welding.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Nano Thermal Paste for Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad for Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque for Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
SPECIFICATIONS
| Brand | ASRock |
| Color | Black |
| Graphics Engine | AMD Radeonâ„¢ RX 7700 XT Graphics |
| Bus Standard | PCI® Express 4.0 x16 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | GDDR6 12GB |
| Engine Clock | Boost Clock: 2584 MHz |
| Game Clock: 2226 MHz | |
| Stream Processors | 3456 |
| Compute Units | 54 |
| Memory Clock | 18Gbps |
| Memory Interface | 192-bit |
| Resolution | Digital Max Resolution: 7680×4320 |
| Interface | 1 x HDMIâ„¢ 2.1 (up to FRL 12Gbps) |
| 3 x DisplayPortâ„¢ 2.1 with DSC (up to UHBR3 13.5Gbps)* | |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 750W |
| Power Connector | 2 x 8-pin |
| Accessories | 1 x Quick Installation Guide |
| Dimensions | 267 x 130 x 51mm |
| Net Weight | 985g |
| Warranty | 3 Years |
| NOTE | *Features, Price and Specifications are subject to change without notice. |
