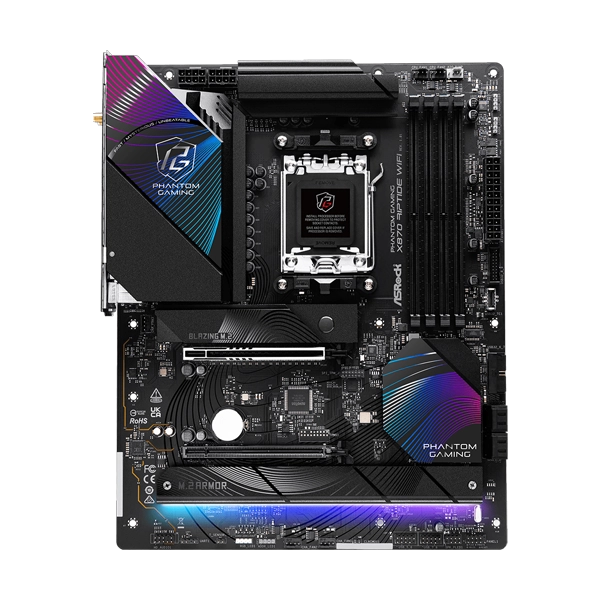

ASRock PHANTOM GAMING X870 Riptide WiFi AM5 DDR5 ATX Motherboard
FEATURES
- Supports AMD AM5 Socket Ryzen™ 9000, 8000 and 7000 Series Processors
- 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 8000+ (OC) - 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
- Graphics Output Options: 2 USB4 Type-C, 1 HDMI
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
4 SATA3 - 2 USB4 Type-C (Rear),
1 USB 3.2 Gen2x2 Type-C (Front),
2 USB 3.2 Gen2 Type-A (Rear),
7 USB 3.2 Gen1 (3 Rear, 4 Front)
8 USB 2.0 (4 Rear, 4 Front) - Killer 2.5G LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink
Specifications
| Brand | ASRock |
| Color | Black |
| Model | X870 RIPTIDE WIFI |
| Unique Feature | |
| Superb Productivity | PCIe Gen5 (Graphics, M.2), Dual Channel DDR5, USB4 Type-C Ports (40 Gb/s) |
| Rock-Solid Durability | 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC with Enlarged Heatsink Armor, Flexible Integrated I/O Shield, 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) |
| Ultrafast Gaming | Killer 2.5G LAN, 802.11be Wi-Fi 7 Module, ASRock Lightning Gaming Ports |
| EZ Update | BIOS Flashback Button, ASRock Auto Driver Installer |
| EZ Troubleshooter | ASRock Post Status Checker |
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | AMD X870 |
| Memory | Dual Channel DDR5 Memory Technology, 4 x DDR5 DIMM Slots, Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC), Max. capacity of system memory: 256GB, Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU), 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz, 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec), Individual PCB Layers for R/L Audio Channel, Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets), Nahimic Audio |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Killer E3100G, Supports Killer LAN Software |
| Wireless LAN | 802.11be 2×2 Wi-Fi 7 Module, Supports IEEE 802.11a/b/g/n/ac/ax/axe/be, Supports 2.4GHz/5GHz/6GHz frequency band, Supports 160MHz channel bandwidth with 6GHz frequency band, 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth 5.4, Supports MU-MIMO |
| PCIe Slots | CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, Chipset: 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module, Supports AMD CrossFire™, 15μ Gold Contact in VGA PCIe Slot |
| Storage | CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode, Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode, ASMedia ASM1061: 4 x SATA3 6.0 Gb/s Connectors, Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| USB Ports | CPU: 2 x USB4 Type-C (Rear), 1 x USB 3.2 Gen2 Type-A (Rear), 1 x USB 3.2 Gen1 Type-A (Rear), Chipset: 1 x USB 3.2 Gen2x2 Type-C (Front), 1 x USB 3.2 Gen2 Type-A (Rear), 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front), 8 x USB 2.0 (4 Rear, 4 Front) |
| Connectors | Multiple connectors including Thermistor Cable Header, Power LED and Speaker Header, RGB LED Header, Addressable LED Headers, Fan Connectors, Power Connectors, Front Panel Audio Connector, USB Headers |
| Rear Panel I/O | 2 x Antenna Ports, 1 x HDMI Port, 1 x Optical SPDIF Out Port, 2 x USB4 Type-C Ports (40 Gb/s), 3 x USB 3.2 Gen1 Type-A Ports, 2 x USB 3.2 Gen2 Type-A Ports, 4 x USB 2.0 Ports, 1 x RJ-45 LAN Port, 1 x BIOS Flashback Button, Audio Jacks |
| Software | ASRock Motherboard Utility (Phantom Gaming Tuning), Killer Control Center, ASRock Polychrome SYNC |
| UEFI | ASRock EZ Mode, ASRock Full HD UEFI, ASRock Auto Driver Installer, ASRock Instant Flash |
| Accessories | 2 x SATA Data Cables, 1 x ASRock WiFi 2.4/5/6 GHz Antenna, 1 x ARGB Splitter Cable, 1 x Thermistor Cable |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in (30.5 cm x 24.4 cm), 8 Layer PCB |
| Operating System | Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications | FCC, CE, ErP/EuP ready |
| Warranty | 3 Years |
| Note | * Features, Price, Specifications are subject to change without notice. |
