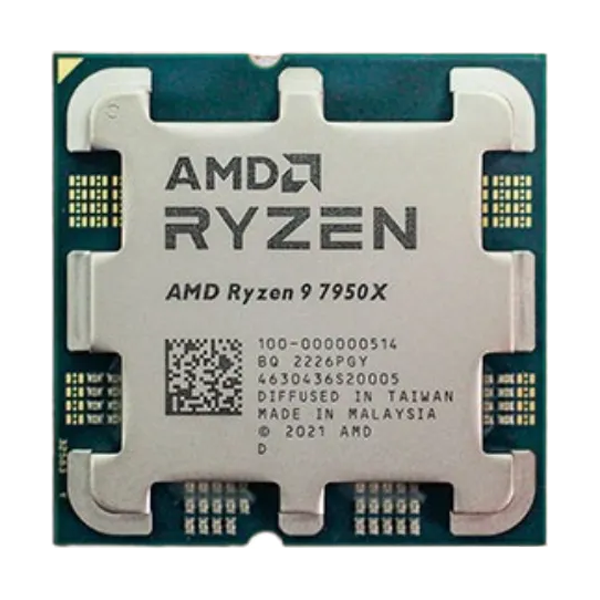

AMD Ryzen 9 7950X
FEATURES
- 16 Cores & 32 Threads, 80 MB Cache, 5nm ‘Zen 4’ Architecture
- Memory Support: DDR5 Up to 5200 MHz, Memory Channels: 2, TDP: 170 W
- Compatible with Motherboards based on 600 series chipset, Socket AM5, Windows 11 Compatible
- Graphics: AMD Radeon Graphics, Included Heatsink Fan: No
- AMD Technologies : AMD EXPO Technology, AMD Ryzen Technologies
SPECIFICATIONS
| Platform | Desktop |
| Market Segment | Enthusiast Desktop |
| Product Family | AMD Ryzenâ„¢ Processors |
| Product Line | AMD Ryzenâ„¢ 9 Desktop Processors |
| AMD PRO Technologies | No |
| Consumer Use | Yes |
| Regional Availability | Global |
| Former Codename | “Raphael AM5” |
| Architecture | “Zen 4” |
| # of CPU Cores | 16 |
| Multithreading (SMT) | Yes |
| # of Threads | 32 |
| Max. Boost Clock | Up to 5.7GHz |
| Base Clock | 4.5GHz |
| L1 Cache | 1MB |
| L2 Cache | 16MB |
| L3 Cache | 64MB |
| Default TDP | 170W |
| Processor Technology for CPU Cores | TSMC 5nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| CPU Compute Die (CCD) Size | 71mm² |
| I/O Die (IOD) Size | 122mm² |
| Package Die Count | 3 |
| Unlocked for Overclocking | Yes |
| AMD EXPOâ„¢ Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzenâ„¢ Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | X670EX 670Â B650EÂ B650 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | Not included |
| Max. Operating Temperature (Tjmax) | 95°C |
| *OS Support | Windows 11 – 64-Bit Edition Windows 10 – 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
Connectivity |
|
| USB Type-C® Support | Yes |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
| Native USB 2.0 (480Mbps) Ports | 1 |
| Native SATA Ports | 0 |
| Native PCIe® Lanes (Total/Usable) | 28/24 |
| Additional Usable PCIe Lanes from Motherboard | AMD X670E 12x Gen4 AMD X670 12xGen4 AMD B650E 8x Gen4 AMD B650 8x Gen4 |
| NVMe Support | Boot, RAID0, RAID1, RAID10 |
| Memory Channels | 2 |
| Max. Memory | 128GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 1x1R 5200 MT/s1x2R 5200 MT/s2x1R 3600 MT/s2x2R 3600 MT/s |
| ECC Support | Yes (Requires mobo support) |
Graphics Capabilities |
|
| Integrated Graphics | Yes |
| Graphics Model | AMD Radeonâ„¢ Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| GPU Base | 400 MHz |
| USB Type-C® DisplayPort™ Alternate Mode | Yes |
Key Features |
|
| Supported Technologies | AMD EXPOâ„¢ Technology AMD Ryzenâ„¢ Technologies |
| Warranty | 3 Years |
| Note | *Features, Price, Specifications are subject to change without notice. |
